Heated grips & Piaa lights

DLR lights are not focussed so not blinding.

H4 LEDs use existing reflector.
Positioning of the LEDs is key to maintaining beam pattern. Hence recommended a supplier of LEDs.

You actually fit a carrier into H4 mount then fit LEDs into carrier. Only issue is to read instructions carefully as it is possible to fit LEDs inverted and this really screws up beam. Easily checked by marking beam pattern on inside of garage door then checking after replament with LEDs.

Lights came off eBay UK

Listing 164406955645

Bulbs in the units failed after a year replaced with some from ebay item 313030691217.

You need to wire a side light power feed to each mirror.

Really jealous of you guys getting 2017 PA spec bikes for £10K.

Oh and can turn off DLRs. Bike is A6 with permanently on lights. Fitted right-hand switchgear from A3 bike, sidelights permanently on, DLR switched by sidelight position on switch and H4s by headlight position on switch.

Thanks for pointing me in the right direction. I will do a little more research on the side lights before I pull the trigger. I think I read somewhere that US bikes already had the power wire too, so it is a plug and play option.

Not to rub it in, but I paid £7K for mine with all taxes and fees. It is new, however 4 years old and I did have brake issues from sitting. I think it is all sorted out, but vehicles that sit do strange things, so we will see if anything else pops up.

Ryan

Ryan_B said:
Wow, the clear lights for the turn signals look great! I may have to go that route and just remove my extra lights. I really like how you matched all the light temperatures as well. I assume these would work as a flood, is there any issues with blinding oncoming traffic? Mostly I just added extra lights for daytime visibility, so normally this is not a concern. I just want to make sure when I am out at night it is not a problem since I cannot turn them off.

Thanks!
Ryan
Click to expand...

The clear turn signals with the clear/orange switchbacks don't really work well as anything other than just more white light up front. They are not a flood or spot in any manner. Same goes for the 2 peanut position marker bulbs by the headlight. They are all more just to be seen better by other drivers and for esthetics. They will not give you any issue that I'm aware of with regards to blinding others. The only time they might be bothersome to you perhaps is in fog - and that's a whole issues in itself anyways.

The only issue with the clear lenses and white/orange lights may be if your police are sticklers for orange/yellow side marker lights on a motorcycle.

If you put a set of F2 LED headlight bulbs in you may find you don't need or want any extra driving lights.

Kevkev said:
Hello,
I am new to the forum recently purchased 2016 st1300 pa, looking at puting heated grips and some extra lighting.
I did see see the oxford heated grips but was not sure on the diameter, they come in 2 sizes.
Any recommendations would be appreciated.

Kevkev
Click to expand...
Welcome to the club, I got mine on November 13th

I'll be getting the Oxford premium touring. My other ST1300 came with Hondaline, but not sure those exist any more...


Attachments

  • 20201113_163026.jpg
    152 KB · Views: 19
  • 20201113_131336.jpg
    168.5 KB · Views: 19
  • 20201118_114650.jpg
    231.2 KB · Views: 20
  • FB_IMG_1605868696531.jpg
    119.9 KB · Views: 19
  • 20201119_133516.jpg
    152.7 KB · Views: 20
Ryan_B said:
Thanks for pointing me in the right direction. I will do a little more research on the side lights before I pull the trigger. I think I read somewhere that US bikes already had the power wire too, so it is a plug and play option.

Not to rub it in, but I paid £7K for mine with all taxes and fees. It is new, however 4 years old and I did have brake issues from sitting. I think it is all sorted out, but vehicles that sit do strange things, so we will see if anything else pops up.

Ryan
Click to expand...
You got a super deal, mine was $10,400 after tax tags, title, and fees. Mine also came with a 5 year Honda factory warranty.

The turn signals are designed to be seen at off axis as well as head on for conspicuity so their beams could be described as a flood pattern. They just don't have the HP (lumens of course) to "flood" an area with light beyond a foot or three and only in your garage. It's just not that bright. It's a nice look to my eye. My bike has switchbacks so when the indicators are on they flash amber then return to the white running/position lights.

Clears lenses and switchback LED's day and night views.



For comparison here's one clear lens and LED, one stock lens and incandescent bulb, incandescent markers and halogen H4 headlight bulbs (pre all LED as per above.)


While we're on the subject - what's current wisdom on where to source the clear turn-signal lenses?
The stock lighting setup is pretty good on my 2008, but I'm good with going LED for more lumens / spread. The LED options / manufacturers / technology seems to still be somewhat of a moving target.
Being seen better by cagers is not a bad deal, either.
Thanks.

Sadlsor said:
While we're on the subject - what's current wisdom on where to source the clear turn-signal lenses?
The stock lighting setup is pretty good on my 2008, but I'm good with going LED for more lumens / spread. The LED options / manufacturers / technology seems to still be somewhat of a moving target.
Being seen better by cagers is not a bad deal, either.
Thanks.
Click to expand...

You can get the clear lenses for the 1300 on Ebay / Amazon / AliExpress etc.
They are not the same build quality as OEM's where the bulbs mount into the lens. Expect to have to do some trimming.

Clear Motorcycle Indicators Turn Signal Lens For Honda St1300 (Front), Turn Signal Assemblies & Lenses - Amazon Canada

Clear Motorcycle Indicators Turn Signal Lens For Honda St1300 (Front) in Turn Signal Assemblies & Lenses.
www.amazon.ca

Topzone Clear Motorcycle Indicators Turn Signal Lens For Honda St1300 (Front), Turn Signal Assemblies & Lenses - Amazon Canada

Topzone Clear Motorcycle Indicators Turn Signal Lens For Honda St1300 (Front) in Turn Signal Assemblies & Lenses.
www.amazon.ca
www.ebay.com

Front Turn Signals for HONDA 03-17 ST1300 Pan-European Police | eBay

BRIGHT2WHEELS LOCATED IN OHIO, USA. OUR PRODUCT DESIGNS ARE MARKETING ORIENTED. Front Turn Signal Lens left and right ( without bulbs and wires) for. Lights Bulbs. Harley Davidson. Arctic Cat. Developed by Kostricani Technology.
www.ebay.com

Motorcycle Front Turn Signals Indicator Lens Winkers For Honda ST1300 02 09 Clear 2002 2003 2004 2005 2006 2007 2008 2009|winker|winker motorcycles - AliExpress

Cheap , Buy Quality Directly from China Suppliers:Motorcycle Front Turn Signals Indicator Lens Winkers For Honda ST1300 02 09 Clear 2002 2003 2004 2005 2006 2007 2008 2009 Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
www.aliexpress.com www.aliexpress.com

Sadlsor said:
While we're on the subject - what's current wisdom on where to source the clear turn-signal lenses?
The stock lighting setup is pretty good on my 2008, but I'm good with going LED for more lumens / spread. The LED options / manufacturers / technology seems to still be somewhat of a moving target.
Click to expand...
My money says all of the above sources sell exactly the same clear 1300 lenses all made by the same manufacturer in China. As mentioned they're a little rough (in the socket area) but look great once installed.

The ST's lighting was greatly improved by replacing the 45/45W halogen bulbs with 55/60W halogens. it was a big difference. But using LEDs is a HUGE difference. And we're a lot better off with LEDs now then were were just a few years ago.

spiderman302 has done extensive research with LED and lighting in general and shared his experience with a manufacturer in China for a much improved bulb. I think LEDs aren't all that much of a moving target now but there will always be room for some improvement or other.

The F2 brand/design of fusion bulb is well suited to most of our riding and it's design (worked out by spidey) is being copied by a could or more other manufacturers. So it's a win-win for us.

My Wing buddy is constantly mentioning how bright my headlights are. He's used to seeing my and others' murky halogens. Conspicuity is strong in this one. The flat beam cutoff keeps the bulbs from offending oncoming drivers.

So, which are THE definitive F2 brand and seller? I've seen F2s in yellow boxes. Are they all legit, and the same?

Evitek is the OEM and they sell it direct in the yellow box through alibaba via slow boat.
Evitek will create a new cover for the reseller with the resellers name and information.
Katana, Safego, Nineo, Alla Lighting, Icbeamer, Xtremevision, Hikari, and others are resellers on amazon.
These resellers can sell other OEM bulbs too. So you have to look at the details of the bulb not the box nor the reseller.

spiderman302 said:
Evitek is the OEM and they sell it direct in the yellow box through alibaba via slow boat.
Evitek will create a new cover for the reseller with the resellers name and information.
Katana, Safego, Nineo, Alla Lighting, Icbeamer, Xtremevision, Hikari, and others are resellers on amazon.
These resellers can sell other OEM bulbs too. So you have to look at the details of the bulb not the box nor the reseller.
Click to expand...
If I may ask, can you please either tell me the pertinent details to look for, or a couple of links to the real deal at best price?

I've seen those names, but I wouldn't know which actual model would be the real McCoy, and don't want to end up with :censored:.

Larry Fine said:
If I may ask, can you please either tell me the pertinent details to look for, or a couple of links to the real deal at best price?

I've seen those names, but I wouldn't know which actual model would be the real McCoy, and don't want to end up with :censored:.
Click to expand...

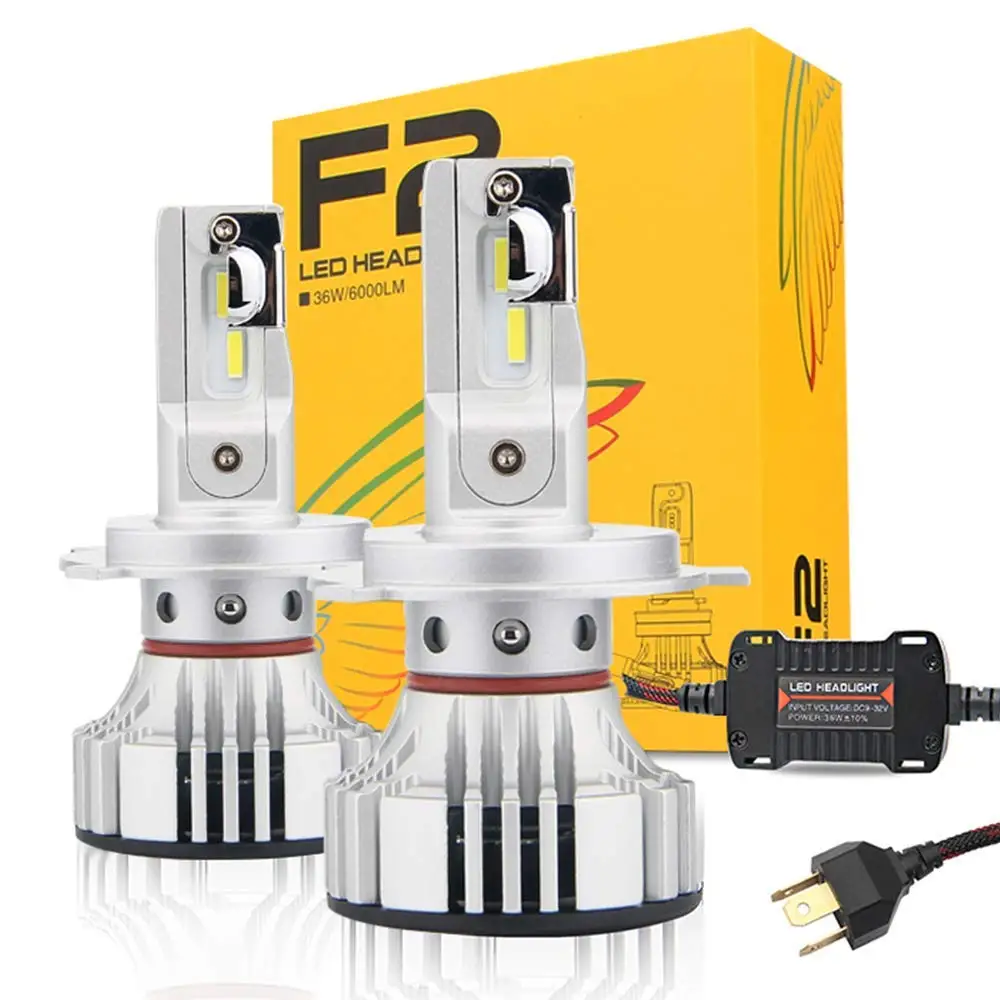

Look for this style - as close as possible. You can get them boxed different and different names / specs. Just make sure you don't get the yellow light temp version and you get the white. I've only seen one yellow light temp version though with most being the white. The photos though will tell you if it's based on an F2.


Power: 72W
Operating Voltage: 9-32V(fit 12V vehicles)
Color Temperature: Pure White 6500K
Luminous Flux: 6000lm
Beam Angle: 360 degree@low beam,360 degree@
Application: Car headlight
Model: H4
Color: silver
Material: Aviation aluminum

Here's what I bought thru Amazon.ca as I didn't want to wait for shipping from China. It cost me a bit more than buying direct but I had less hassles as it was shipped by Amazon.

9005 HB3 LED Headlight Bulb Conversion Kit Safego 72W 6500K 12000LM(6000LMx2) 9005 Bulb Extremely Bright Led Chips Waterproof Ip67 360°Degree Lighting for Car Headlight Replacement,2 Pack: Amazon.ca: Automotive

9005 HB3 LED Headlight Bulb Conversion Kit Safego 72W 6500K 12000LM(6000LMx2) 9005 Bulb Extremely Bright Led Chips Waterproof Ip67 360°Degree Lighting for Car Headlight Replacement,2 Pack: Amazon.ca: Automotive
www.amazon.ca

Last edited:
I wasn't looking for the yellow box, but I searched Amazon, sorted by price, and found these first:

Amazon.com: H4 9003 LED Headlight Bulbs 6,000LM Per Set 6500K Xenon White for High and Low Beam Hi/Lo Plug and Play Conversion Kit, Pack of 2: Automotive

Buy H4 9003 LED Headlight Bulbs 6, 000LM Per Set 6500K Xenon White for High and Low Beam Hi/Lo Plug and Play Conversion Kit, Pack of 2: Bulbs - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
www.amazon.com

Then I searched shopping on Google, also by price, and found these; with shipping, over $43.00:
www.alibaba.com

Auto Lighting System Hb3 Hb4 H1 H3 9005 9006 9007 Led Car Light Bulb Canbus Error H7 Led Lights H4 F2 Led Headlight - Buy F2 Led Headlight,H4 Led,Led Headlight Product on Alibaba.com

Auto Lighting System Hb3 Hb4 H1 H3 9005 9006 9007 Led Car Light Bulb Canbus Error H7 Led Lights H4 F2 Led Headlight - Buy F2 Led Headlight,H4 Led,Led Headlight Product on Alibaba.com
www.alibaba.com www.alibaba.com

Both legit, the right stuff?

Larry Fine said:
I wasn't looking for the yellow box, but I searched Amazon, sorted by price, and found these first:

Amazon.com: H4 9003 LED Headlight Bulbs 6,000LM Per Set 6500K Xenon White for High and Low Beam Hi/Lo Plug and Play Conversion Kit, Pack of 2: Automotive

Buy H4 9003 LED Headlight Bulbs 6, 000LM Per Set 6500K Xenon White for High and Low Beam Hi/Lo Plug and Play Conversion Kit, Pack of 2: Bulbs - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
www.amazon.com

Then I searched shopping on Google, also by price, and found these; with shipping, over $43.00:
www.alibaba.com

Auto Lighting System Hb3 Hb4 H1 H3 9005 9006 9007 Led Car Light Bulb Canbus Error H7 Led Lights H4 F2 Led Headlight - Buy F2 Led Headlight,H4 Led,Led Headlight Product on Alibaba.com

Auto Lighting System Hb3 Hb4 H1 H3 9005 9006 9007 Led Car Light Bulb Canbus Error H7 Led Lights H4 F2 Led Headlight - Buy F2 Led Headlight,H4 Led,Led Headlight Product on Alibaba.com
www.alibaba.com www.alibaba.com

Both legit, the right stuff?
Click to expand...

I'd say they are all the same as what I got, just different sellers, prices and boxes. Just make sure you get the H4 models (high & low beam and 3 prong plug)

I went ahead and ordered the LEDs from Amazon above. $46 for a pair was the best deal I could find on the exact match.


Just to be clear, socket shims are still required for correct reflector positioning, correct?
