Scanned or 3D printed mirror covers

[Eagle59]

Has anybody done any experimenting with scanning and printing ST1100 mirror covers? They are almost impossible to find anywhere. The ones I have have been repaired from a previous life. I'm in the process of picking up a 3d printer. I'm trying to get some good scans to see if they can be printed with carbon fiber filaments. It would take some work to get a printed cover to take paint and mounting but it would be a good winter project.



[Uncle Phil]

This subject had been discussed previously but that thread was probably lost in the 'great accidental cleansing'.
I think the biggest challenge would be dealing with the three metal 'prongs' that snap into the upper fairing clips to hold it in place.



[jdmccright]

It's been on my to-do list for several years now *sigh*. I've attempted scans but they haven't turned out good as it is a complex piece. I'm a novice when it comes to scanning but pretty good at printing and modeling as I have already made and sold several other bits for the 1100. My ads were also lost in The Great Purge of 2025.

My answer to the studs would be to model the holes for an interference fit, then heat up the studs (removed from another piece) so they soften the plastic as they are inserted, then forced-air cool so it doesn't soften the surrounding plastic.

If you have good scanning tips, I'm open to them. Using a 3DMakerPro JMS1 Seal Lite.



[Roger]

I don't have a clue about these....
3D printing software files for unobtanium mirror covers

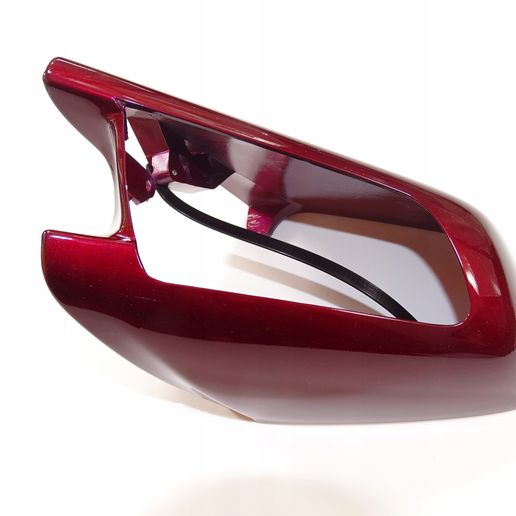

ST1100 motorcycle mirror

Scanned side mirror overlay on st1100 motorcycle. There are internal flaws on the installation does not affect.

cults3d.com

Honda ST1100 Mirror Housing

These files are the result of a 3D Scan of a Honda ST1100 Mirror Housing.This archive contains 3 3D files in .stil format.PLEASE CONSIDER THESE EXPERIMENTAL. A PRINTED PART WILL REQUIRE HAND FINISHING/SANDING/PAINTING.When 3D printing it is recommended to use ABS or ASA as material because this...

sparecans.gumroad.com



[jdmccright]

The first model for sale on cults3d was strictly for personal use only. It's price has also come down from when I viewed it. The second is a new one, looks better and is much less restrictive in its usage. I may pay and see if it works out to get something available. Nice find!

UPDATE : I paid $10 for the files. Looks good quality. I'd do a few tweaks for the metal studs and screw holes, but quite nice otherwise.
