Show me your Top Box!

Re: Top Box pics

Silver Bullit said:
I am in the market for a top trunk. trying to pick a brand. I like the E55 from Givi and i like the oem from honda...Please post pics of the one you have so i can redo my christman list....
Click to expand...

Here are a couple of pic's. Givi E36 flat black top box. Holds one helmet and other STuff. I also can move it to my KLR and/or my Wee DL650.

Here's my new purchase for the ST Givi E55 Silver(G730)



Here's the CGR Givi for the ST1100.
By the way, the entire assembly including mounting brackets plate and backrest is available for sale.


Attachments

  • S5000036.jpg
    307.9 KB · Views: 113
Blrfl said:
See attached. Note the rubber foot stuck to the side of the box to keep the antenna from whacking it.

Sorry for the picture quality... The reflective stuff on the back has made it impossible to photograph the back of the bike with a flash.

--Mark
Click to expand...

Where did you get the antenna mount? How did you ground it?

RideCoach said:
Where did you get the antenna mount? How did you ground it?
Click to expand...

It's custom-built: CLICKY.

There's no ground; it was designed for use with an end-fed antennas that don't require one. At any rate, the 1300 doesn't lend itself to being a ground plane, so anything like that should really be accomplished with separate counterpoise wires.

(We now return you to our regularly scheduled program.)

--Mark

Finally have mine mounted. I am writing up the install instructions I made up but don't know quite how to post it yet. It's a PDF file. May have to convert it to something else. I'll figure it out.

Here is my Bestem 2012 t-box


Edit: here is the install document that details how I installed this box. Been on a few trips now and really like the Bestem 2012.

Bestem 2012 t-box mounting to ST1100

Great looking set up.

I bought the Bestem 929 last spring and was impressed with the quality. I was expecting it to not be very rigid/solid, especially for the price. I was wrong.

I am envious of the added lights in the middle band. Mine does not have them, only the ones you show as brake lights. If they are LED, they don't pull much juice so the small wire will more than likely be OK.

Here's my top box 250' under the English Channel on the Euro Shuttle train on it's way to France.........;)


Attachments

  • in the tunnel.jpg
    in the tunnel.jpg
    162.1 KB · Views: 155

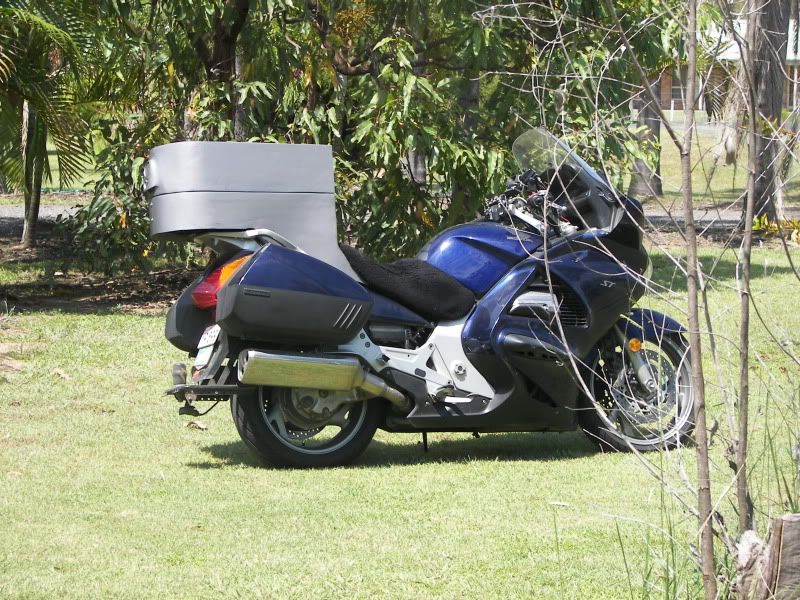

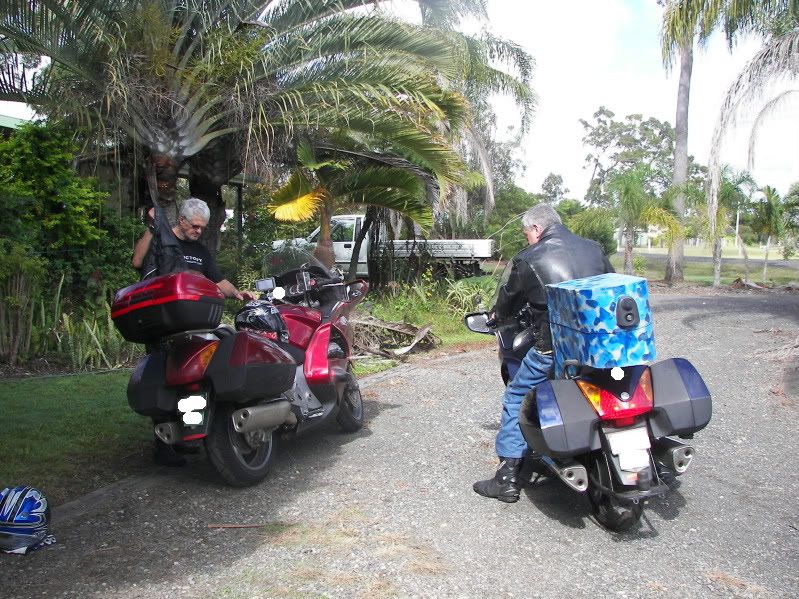

My first f/glass project. I had the box almost ready to paint but the lid was basically nothing. My Bro called to tell me he was heading through on his way south .. in 3 days .. if i wanted to join him.

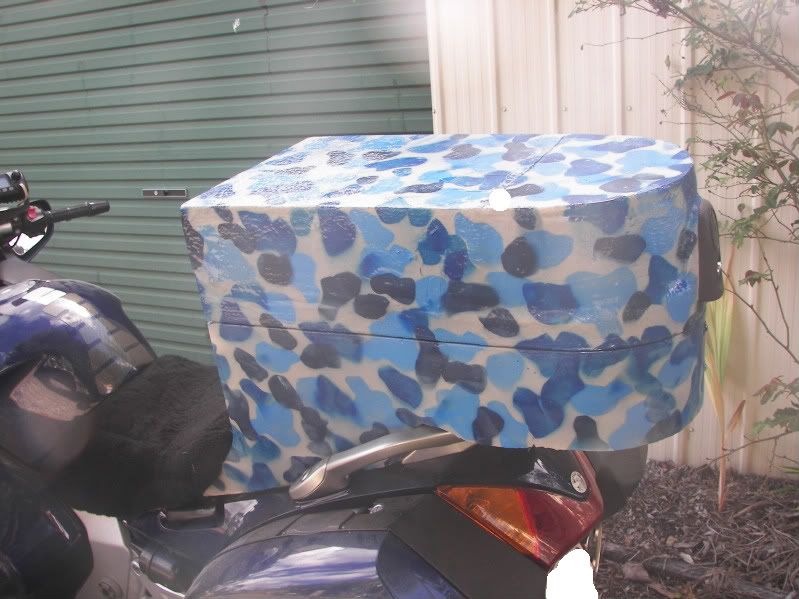

As you can see, in 2 days, I threw some glass and resin together and as expected it turned out like crap ..so I grabbed a can of gray primer and 3 shades of blue .. just to hide the rough surface.
Now (no pix) I'm doing the lid again ... should be color matched in a few weeks .. unless I change my mind :D

BTW .. I did 2,000 + kilometers, some through torrential rain .. no leaks !!

I would go with the Hondaline, bought mine last July 2010 and it makes the bike look like a touring bike with agressiveness. I have had Givi's in the past, great product, but for a little more, you have the real deal.


Attachments

  • DSCN1123.JPG
    379.5 KB · Views: 191
Well here it is after some paint.
Not the best finish, but it works and keeps the rain out.



And it hold ALL my tent, sleeping bag and more ... good enough for this little black duck. :tent3:
